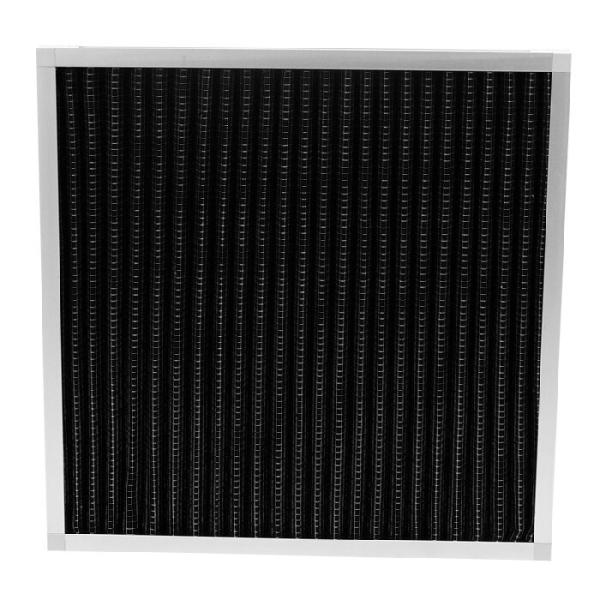

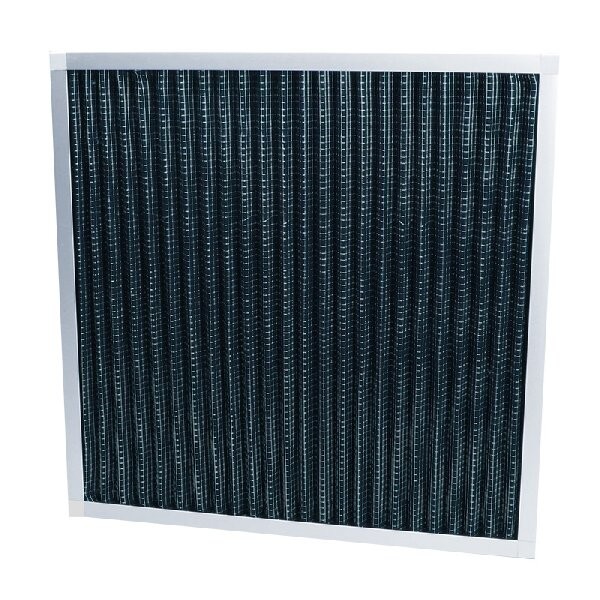

Pleated Chemical Air Purifier Filter Activated Carbon For Odor Removal

  • 1
  • 2
  • 3

Brand Name : Klair

Model Number : CP

Certification : ISO 16890

Place of Origin : China

MOQ : 1

Price : US$ 1-10

Payment Terms : T/T, D/P, Western Union, D/A, L/C, MoneyGram

Supply Ability : 500 pcs pre week

Delivery Time : 10-15days

Packaging Details : Carton

Media : Aluminum mesh/Stainless steel mesh

Frame : Aluminum/Galvanized steel/Stainless steel

Protective net : Aluminum zinc grid/Galvanized iron wire/Stainless steel

Max. temperature : 80ºC

Max. relative humidity : 100%

Application : Light weight, easy installation

Contact Now

Pleated Chemical Air Purifier Filter Activated Carbon Pleated Filter for Odor Removal

Product Description

Activated carbon pleated filter it is a kind of porous and efficient adsorbent material for removing impurities in gas, and has good adsorption and killing ability for toxic gas and harmful bacteria in air. The foldable activated carbon filter adopts V-shaped design, with higher carbon content, smaller space and larger air volume. It has the characteristics of small volume, high adsorption efficiency, small wind resistance and long service life. It is used to remove high concentration of acid, base and organic compound gases and all kinds of harmful gases in the air.


Features

1. The dual function of absorbing odor and filtering air can effectively filter dust, odor and organic pollutants in the air.
2. Strong adsorption capacity of acid, base and odor gases.
3. small resistance, large filtration area, large air volume.
4. the outer frame can choose cardboard composition, high economy. Also can choose galvanized iron frame or aluminum frame and other materials to increase its strength.
5. Light weight, easy installation, suitable for all kinds of HvAc systems.
6. Can be customized according to customer reguirements.

Technical Data Sheet

Media: Aluminum mesh/Stainless steel mesh
Frame: Aluminum/Galvanized steel/Stainless steel
Protective net: Aluminum zinc grid/Galvanized iron wire/Stainless steel
Max. Temperature: 80ºC
Max. Humidity: 100%

Parameters Table

PART NUMBER FILTER DIMENSIONS
(HXWX D)		 NUMBER
OF
PLEATS		 MEDIA AREA RATED AIR FLOW INITIAL RESISTANCE
NOMINAL (inch) ACTUAL(mm) (M2) (cfm) (m3/h) (PA)
CP-24242 24 x 24 x 2 595x595x46 22 1.1 1881 3200 55
CP-24202 24x20x2 595x495x46 18 0.95 1646 2800 55
CP-20202 20x20x2 495x495x46 18 0.85 1528 2600 55
CP-24122 24x12x2 595x295x46 12 0.6 940 1600 55
CP-12122 12x12x2 295x295x46 12 0.3 470 800 55
CP-24244 24x24x4 595x595x96 22 2.1 2000 3400 65
CP-24204 24x20x4 595x495x96 18 1.8 1881 3200 65
CP-20204 20x20x4 495x495x96 18 1.7 1764 3000 65
CP-24124 24x12x4 595x295x96 12 1.15 1000 1700 65
CP-12124 12x12x4 295x295x96 12 0.55 529 900 65

Pleated Chemical Air Purifier Filter Activated Carbon For Odor RemovalPleated Chemical Air Purifier Filter Activated Carbon For Odor RemovalPleated Chemical Air Purifier Filter Activated Carbon For Odor Removal
