Aluminum Frame Activated Carbon Air Filter 2 / 4 Inch For Odor Smell Removal

Name: Aluminum Frame Activated Carbon Air Filter 2 4 Inch For Odor Smell Removal
Brand: KLAIR
Price: 1 USD

Wholesale Aluminum Frame Activated Carbon Air Filter 2 / 4 Inch For Odor Smell Removal from china suppliers

Place of Origin : China

Brand Name : KLAIR

Certification : ISO 16890

Model Number : BlackGuard CP

MOQ : 1 PCS

Price : Negotiable

Payment Terms : T/T, LC, Western Union

Supply Ability : 500 PCS Per Week

Packaging Details : Carton + Pallet Crate

Delivery Time : 5-8 Days

Product Name : Carbon Filter

Usage : Odor and Gas Filtration

Dimension : 24" x 24" x 2"

Application : General Ventilation System

Material : Carbon Synthetic

Type : Pleated Panel

Contact Now

Klair Aluminum Frame Activated Carbon Filter with 2 inch / 4 inch For Odor Smell Removal

Description:

Media: Activated carbon fiber or Activated carbon felt
Frame: Aluminium or Galvanized steel
Average arrestance: 92%
Gasket: EVA foam.
Recommended final pressure drop:200 Pa
Humidity resistance: 60%
Max Temperature: 80 ℃
DIN 53438 Flammability: F1
UL 900 Standard : Class 2
Max.air flow rate: 125% of rated air flow
Media color available: black
Filter standard depth available 2 inch(46mm) and 4 inch(96mm)
Galvanized mesh protection in air down steam side.

Applications:

The Carbon filter are used for filtration of airborne particles, odors, smoke, noxious gas in civil and industrial air conditioning systems. It is commonly also used as pre-filtration stage for fine dust filters.

Specifications:

Nominal Size WxHxD.inch	Actual Size WxHxD.mm	Rated Airflow(m3/hr)	Initial Pressure Drop (Pa)	Removal Efficiency (%)
24x24x1	595x595x21	1600	40	Depending on field condition
20x24x1	495x595x21	1350
12x24x1	295x595x21	800
24x24x2	595x595x46	3200
20x24x2	495x595x46	2700
12x24x2	295x595x46	1600

Other sizes is available!

Competitive Advantage:

High efficiency activated carbon powder.
Pleated media to enlarge filtration area.
For chemical and hospital application where gas removal required.

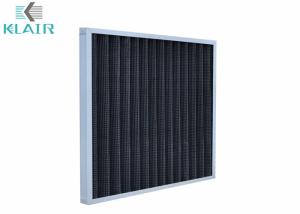

Product Picture:

Aluminum Frame Activated Carbon Air Filter 2 / 4 Inch For Odor Smell Removal
